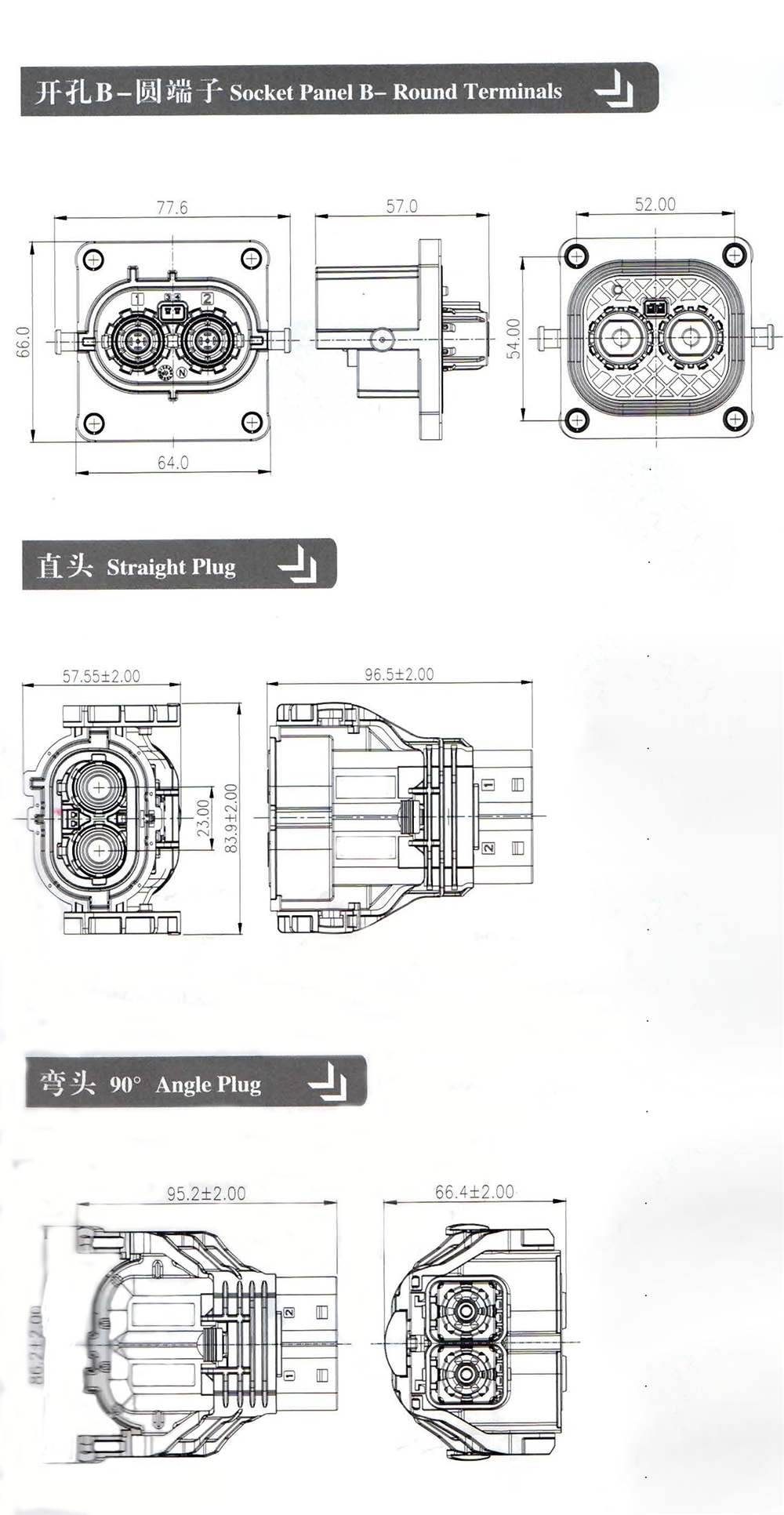

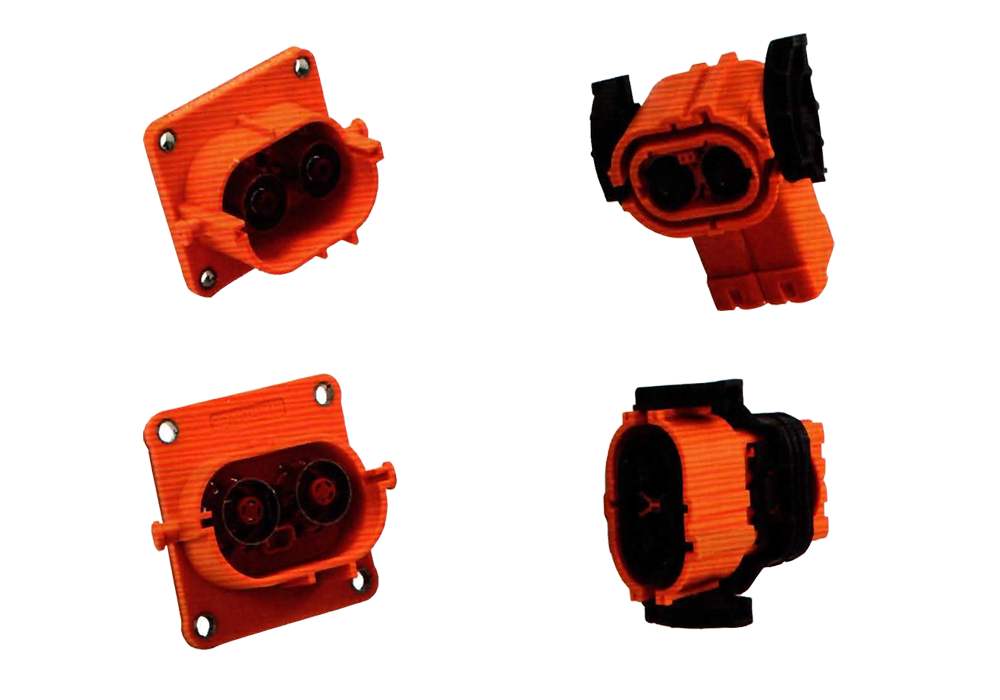

2芯25~70方直头&弯头连接器2-pin 25-70mmStraight & 90°Angle Connector

电气特性 Electrical performance

额定电流 Rated Current:          125A/150A/200A/250A

额定电压 Rated Voitage:          1000VDC

绝缘电阻 Insulation Resistance:5000MΩMIN(干燥Dry),200MΩ MIN(RH 95%)

测试电压 Test Voitage:             3000V AC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles: 500 times

配线范围 Wire Range:                     25mm²~70mm²

耐环境性能Environment performance

防水等级 IP Degree:                        IP67B or IP6K9K

温度范围 Operation Temperature:   -40℃~+125℃

盐雾等级 Salt Spray Resistance:       144H(mating state)

参考标准Reference standard

USCAR-2

USCAR-37

LV-215

产品应用Application

产品为车载高压塑胶连接器，产品用于如车载充电机、电  池包、高压配电盒、电机控制器、电机、空调、PTC、

电池等部件间的高压连接。

The product is vehicle mounted high-voltage plasticconnector,which is used for

high-voltageconnection between components such as vehicle charger, batter  pack,

high-voltage distribution box,motor controller, motor.air conditioner,PTCbatteryetc.
