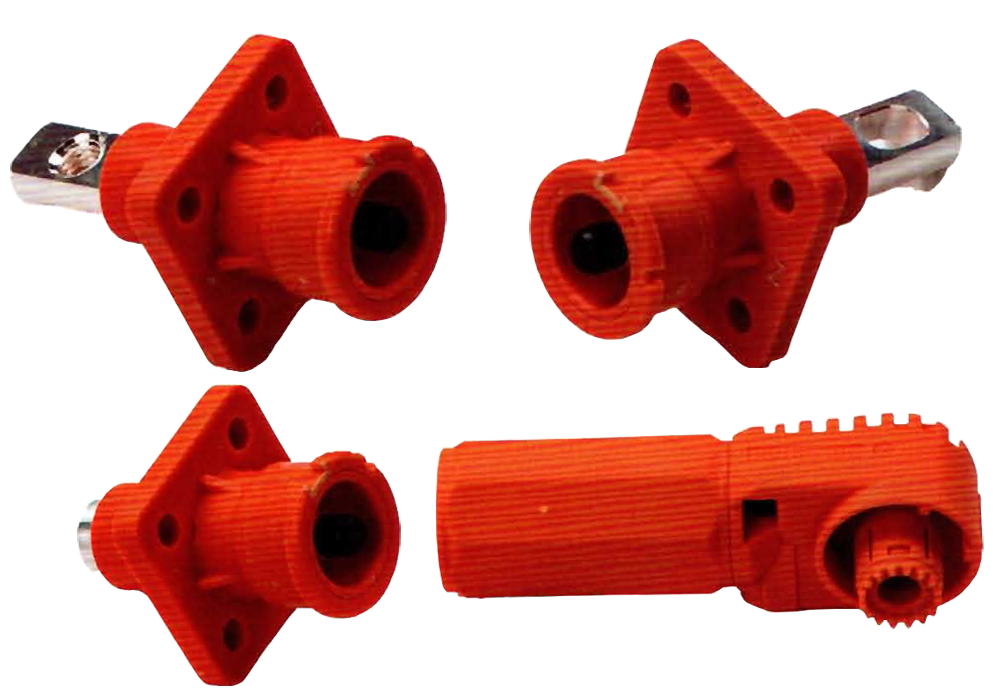

6.0单芯弯头连接器TUV(IP67B)

6.0 Single Pin 90°Right Angle Connector TUV Approved(IP67B)

电气特性 Electrical performance

额定电流 Rated Current:          70A/80A/125A

额定电压 Rated Voitage:          TUV DC1500V

绝缘电阻 Insulation Resistance: 5000MΩMIN(干燥drying) 200MΩ MIN(RH 95%)

测试电压 Test Voitage:              TUV 4260V AC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles: 500

配线范围 Wire Range 10mm²~25mm²

耐环境性能Environment performance

防水等级 IP Degree:                     IP67B

温度范围 Operation Temperature:-40℃~125℃

盐雾等级 Salt Spray Resistance:     144H

参考标准Reference standard

TUV 2pfG2740-04.20

USCAR-2

USCAR37

产品应用Application

产品为储能塑胶连接器，产品用于如储能柜，储能站，移动储能车，光伏发电站等部件间的高压连接。

The product is energy storage plastic connector,which is

used for high-voltage connection between components

such as energy storage cabinet,energy storage station,

mobile energy storage vehicle, photovoltaic power station,etc.
