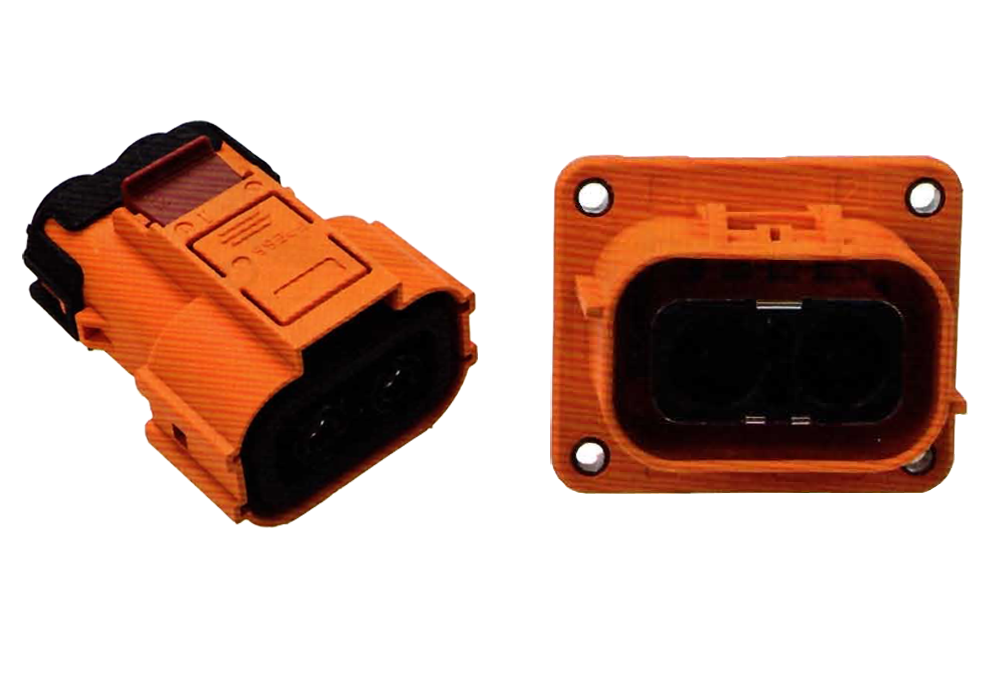

2芯16~35方塑胶屏蔽连接器2-pin 16~35mmPlastic Shel Shielded Connectors

电气特性 Electrical performance

额定电流 Rated Current            100A/125A/150A

额定电压 Rated Voitage            DC1000V

绝缘电阻 Insulation Resistance 5000MΩMIN(干燥drying)  200MΩ MIN(RH 95%)

测试电压 Test Voitage              3000V AC

机械特性Mechanical performance

机械寿命 Minimum Mating Cycles     500 times

配线范围 Wire Range                        16mm²~35mm²

耐环境性能Environment performance

防水等级  IP Degree                      IP67B

温度范围 Operation Temperature  -40℃~125℃

盐雾等级 Salt Spray Resistance      144H(配合状态)

参考标准Reference standard

USCAR-2

USCAR37

产品应用 Application

产品为车载高压塑胶连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC、电池等部件间的高压连接。

The product is vehicle mounted high-voltage plastic connector, which is used for high-voltage connection  between components such as vehicle charger, battery

pack,high-voltage distribution box,motor controller, motor, air conditioner,PTC,battery, etc.
