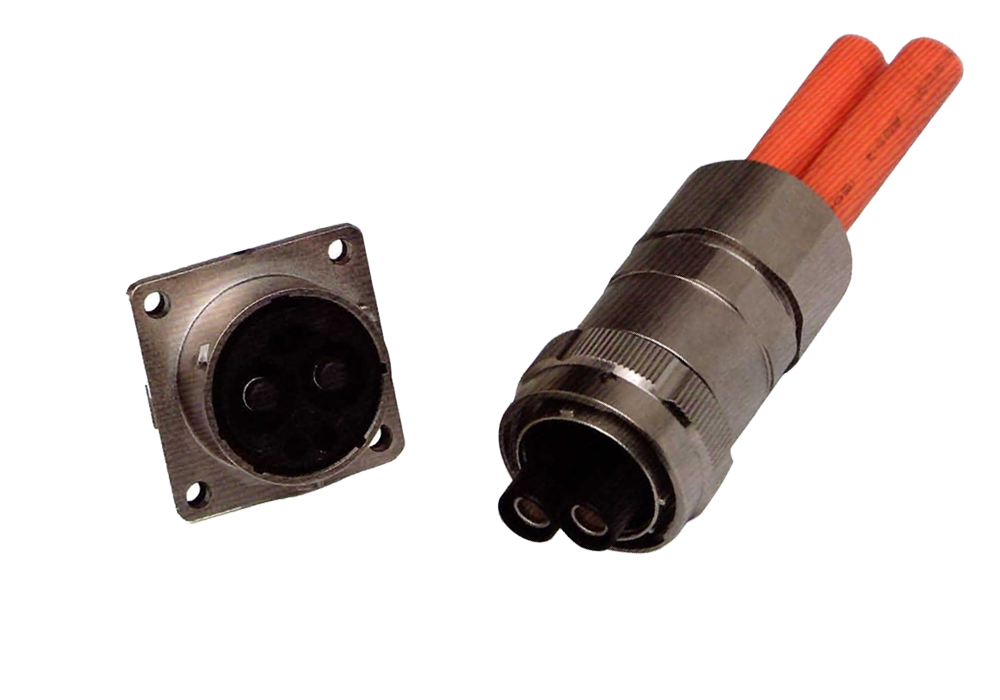

FPT2202 Series

电气特性 Electrical performance

额定电流 Rated Current 150A MAX

额定电压 Rated Voitage 800V

绝缘电阻 Insulation Resistance 5000MΩ(@25℃40%-60%H)

测试电压 Test Voitage 2500VDC

机械特性Mechanical performance

机械寿命 Minimum Mating Cycles 500cycles

配线范围 Wire Range 16mm2~35mm

耐环境性能Environment performance

防水等级 IP Degree  IP67(mated)

温度范围 Operation Temperature -40℃~125℃

盐霉等级 Salt Spray Resistance 48H

参考标准 Reference standard

USCAR-2

USCAR37

RoHS

MIL-C-26482

产品应用Application

产品为车载高压金属连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC、电池等部件间的高压连接。

The connector with metal shell that widely used in electrical vehicle field for high voltae current transmission between devices such as vehicle charger,battery pack,high-voltage distribution box,motor controller,motor,air conditioner,PTC,battery, etc.
