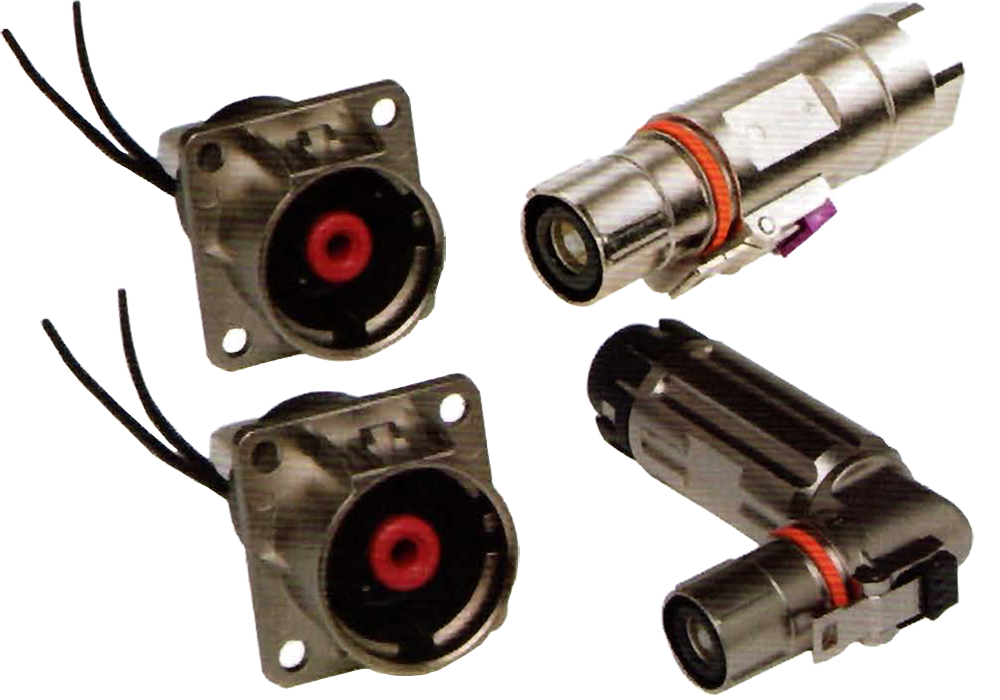

FPL300 Series

电气特性 Electrical performance

额定电流 Rated Current 250A MAX

额定电压 Rated Voitage 1000V

绝缘电阻 Insulation Resistance 5000MΩ(@25℃ 40%-60%RH)

测试电压 Test Voitage 3000VDC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles 500cycles

配线范围 Wire Range 35mm2~75mm

耐环境性能Environment performance

防水等级 IP Degree IP67(mated)

温度范围 Operation Temperature -40℃~125℃

盐露等级 Salt Spray Resistance 48H

参考标准 Reference standard

USCAR-2

USCAR37

RoHs

LV215

产品应用 Application

产品为车载高压金属连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC 电池等部件间的高压连接。

This connector with a metal shell,that was widely used in electrical vehicle field for high voltage current transmission between devices such as vehicle charger,battery pack,high-voltage distribution box,motor controller, motor,air conditioner, PTC, battery etc.
