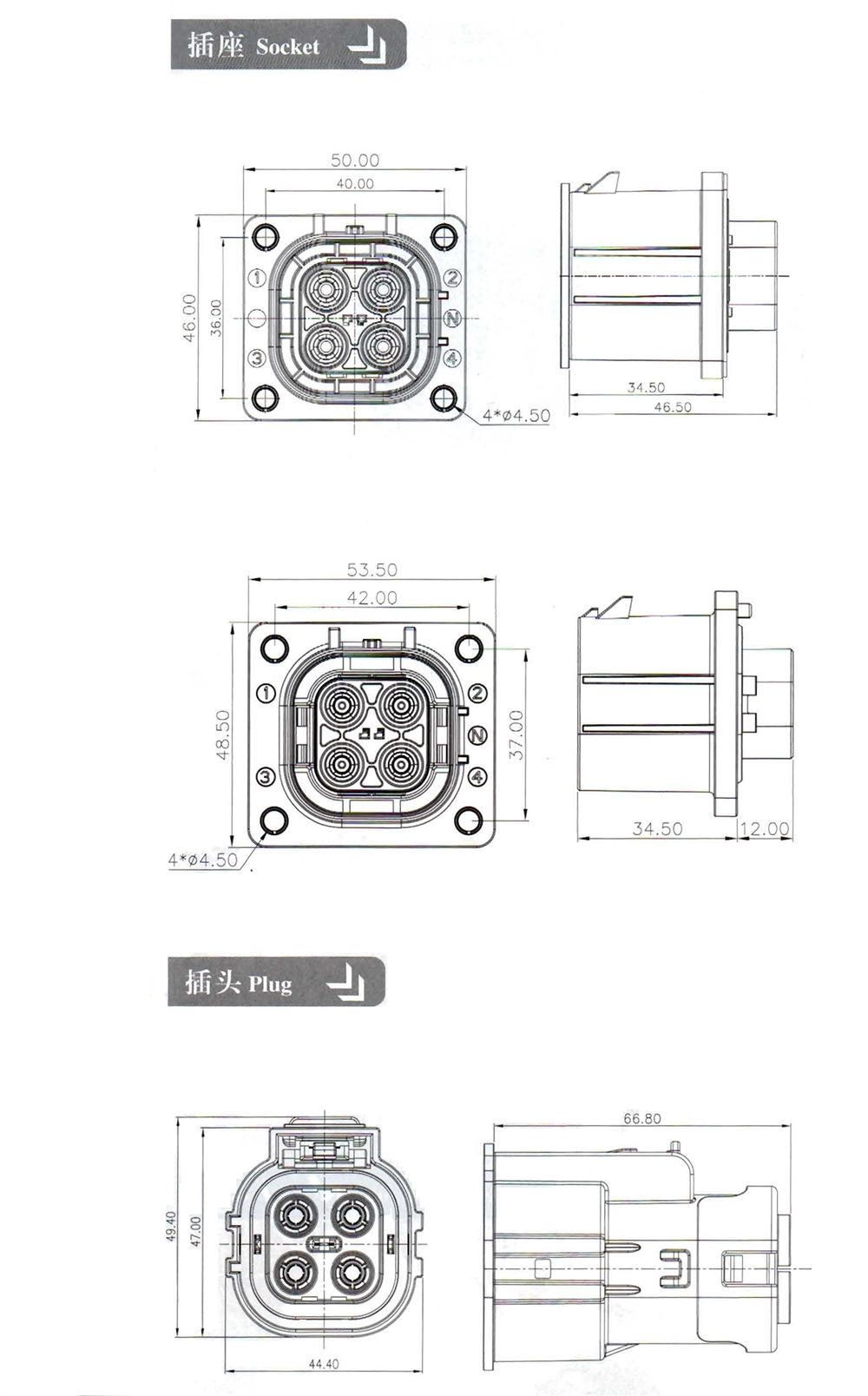

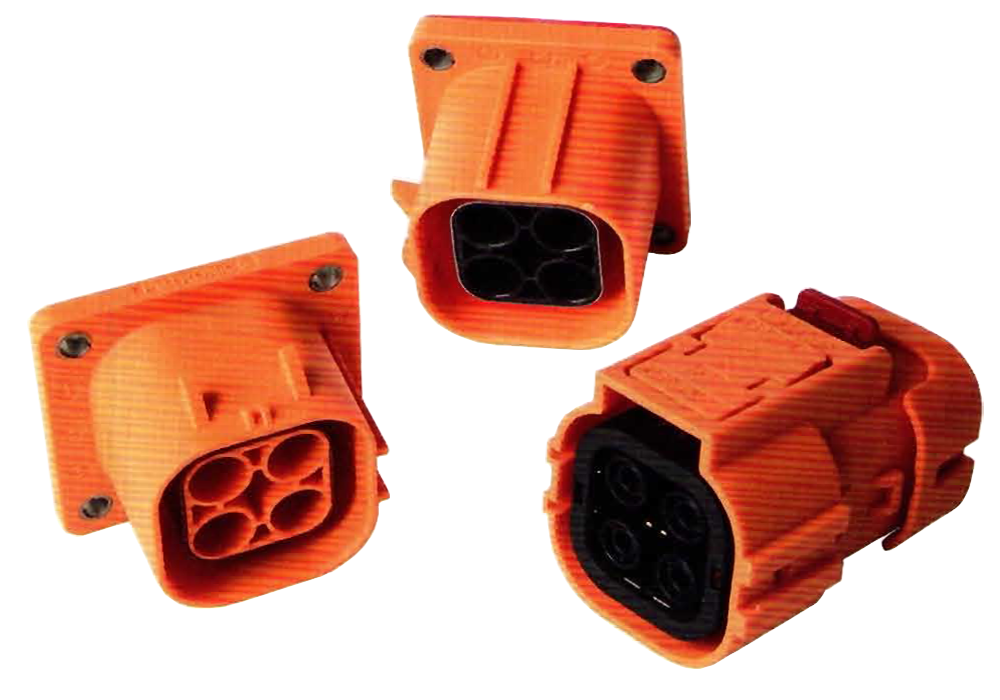

4芯2.5~16塑胶高压连接器 4-pin 2.5~16mm2 Plastic Shell HV Connector

电气特性 Electrical performance

额定电流 Rated Current 20A/30A/45A/70A/80A

额定电压 Rated Voitage 1000V

绝缘电阻 Insulation Resistance  5000MΩMIN(干燥 drying) 200MΩ MIN(RH 95%)

测试电压 Test Voitage 3000VAC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles 500次

配线范围 Wire Range  2.5mm2~16mm

耐环境性能Environment performance

防水等级 IP Degree IP67B

温度范围 Operation Temperature  -40℃~125℃

盐雾等级 Salt Spray Resistance 144H

参考标准

USCAR-2

USCAR37

ROSH

产品应用 Application

产品为车载高压塑胶连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC、电池等部件间的高压连接。

Reference standard The product is vehicle mounted high-voltage plastic connector, which is used for high-voltage connection  between components such as vehicle charger, battery pack,high-voltage distribution box,motor controller,motor,air conditioner,PTC,battery, etc.
