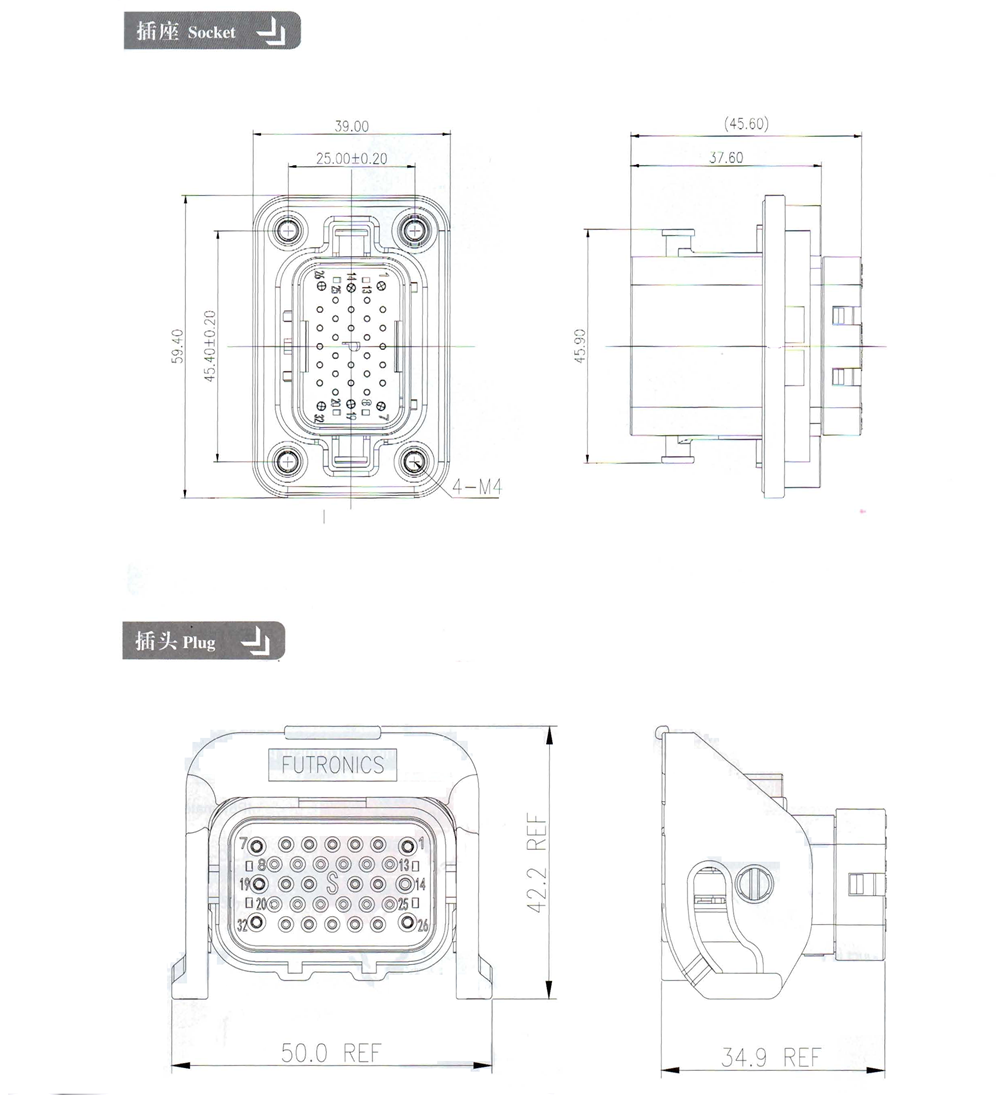

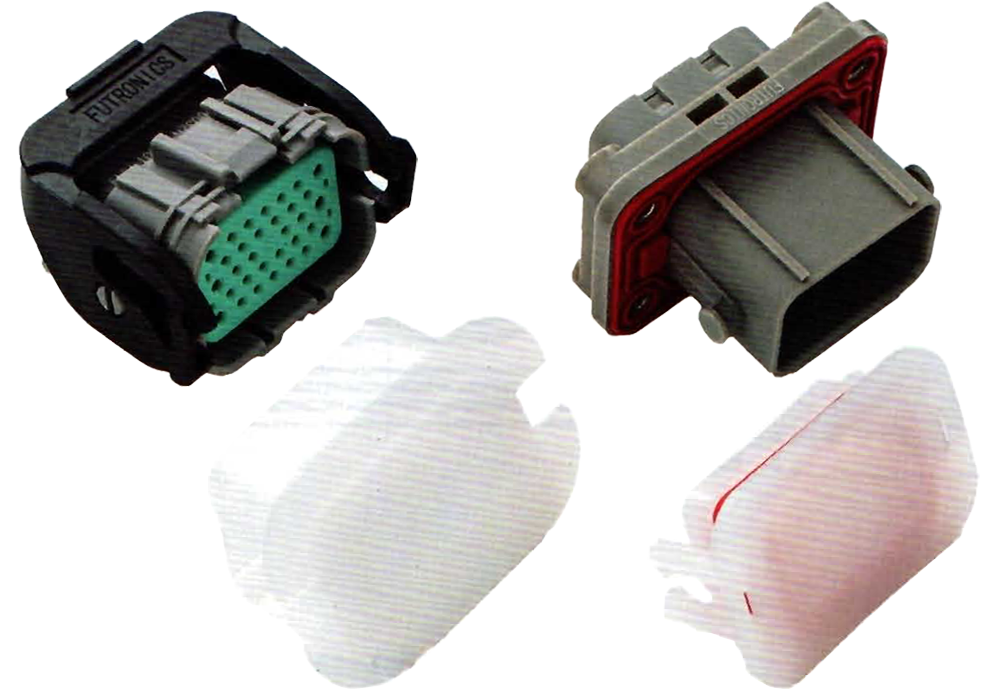

32芯塑胶信号连接器 32-way Signal Plastic Shell Connector

电气特性Electrical performance

额定电流 Power:13A Max Signal:5A Max

额定电压 Rated Voitage  DC500V

绝缘电阻 Insulation Resistance 5000MΩ MIN(干燥 drying)  200MΩ MIN(RH 95%)

测试电压 Test Voitage 3000V AC

机械特性Mechanical performance Rated Current

机械寿命 Minimum Mating Cycles 500

配线范围 Wire Range 0.35mm2~1.5mm2

耐环境性能Environment performance

防水等级 IP Degree IP67

温度范围 Operation Temperature  -40℃~125℃

盐雾等级 Salt Spray Resistance 144H(配合状态)

参考标准Reference standard

USCAR-2

USCAR37

产品应用 Application

产品为车载塑胶信号连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC、电池等部件间的信号传输。

The product is the vehicle plastic signal connector,the product is used for the signal transmission between the  vehicle charger, battery pack,high voltage distribution  box, motor controller, motor,air conditioner,PTC,battery and other components.
