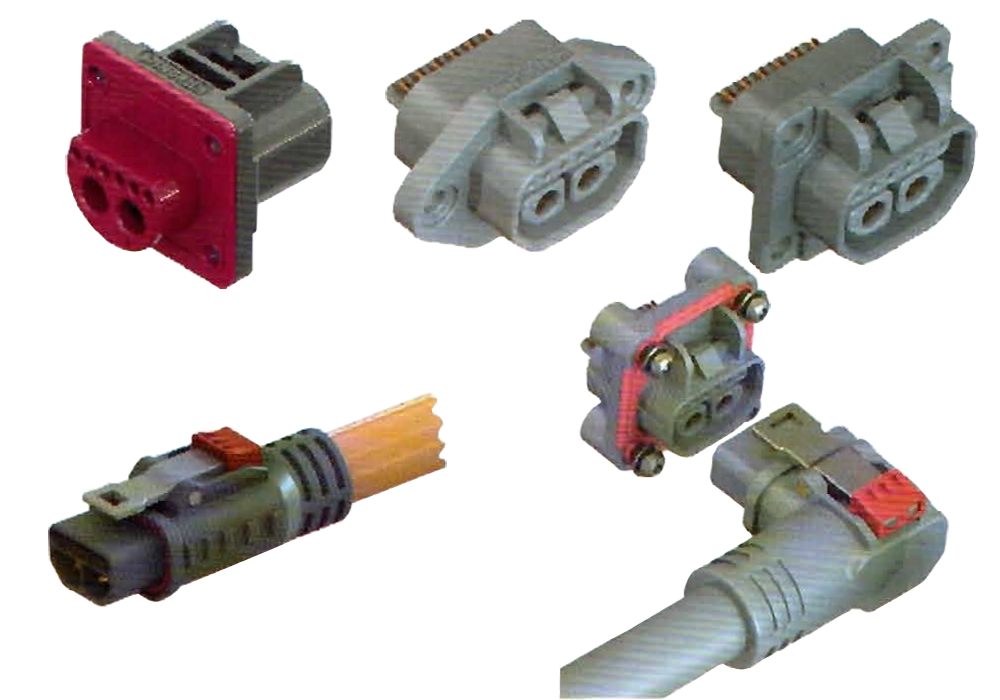

2芯60A+6pin信号连接器A Power(60A)+ Signal Hybrid (2+6) Connector A

电气特性 Electrical performance

额定电流 Rated Current 60A

额定电压 Rated Voitage 1000V DC

绝缘电阻 Insulation Resistance 5000MΩ MIN(干燥 Dry)200MΩ MIN(RH 95%)

测试电压 Test Voitage 3000V AC  4800V DC

机械特性Mechanical performance

机械寿命 Minimum Mating Cycles  5000 times

配线范围 Wire Range   电源(Power):8AWG  信号(Signal):20AWG

耐环境性能Environment performance

防水等级 IP Degree    IP67(插座单体防水)

温度范围 Operation Temperature -45℃~125℃

盐雾等级 Salt Spray Resistance 144H(配合状态下)

参考标准Reference standard

USCAR-2

产品应用 Application

产品为车载连接器，用于电动汽车或者电摩部件间的连接。

The product is vehicle connector,which is used for the connection between electric vehicle or electric motorcycle parts.
